Industrial Dehumidifier Series EP - Technical Specifications
Product Comparison Table
| Model | Dehumidification Capacity | Power Supply | Power Consumption | Applicable Area | Dimensions |
|---|---|---|---|---|---|
| EP-20S | 20L/h | 380V/50Hz | 8400W | 600-800㎡ | 1030×541×1815mm |
| EP-12S | 12L/h | 380V/50Hz | 4650W | 450-500㎡ | 680×484×1710mm |
| EP-6.8D | 6.8L/h | 220V/50Hz | 2500W | 200-250㎡ | 600×434×1600mm |
Technical Specifications Analysis
Performance Characteristics
- Capacity Range: 6.8L/h to 20L/h, suitable for various industrial and commercial applications
- Power Efficiency: Higher capacity models require industrial-grade 380V power supply
- Area Coverage: Designed for spaces ranging from 200㎡ to 800㎡
Power Configuration
- High-power Models (EP-20S/EP-12S): 380V three-phase industrial power supply
- Standard Model (EP-6.8D): 220V single-phase commercial power supply
- Energy Consumption: Proportional to dehumidification capacity
Physical Specifications
- Size Scaling: Dimensions increase with capacity and performance requirements
- Space Planning: Consider physical footprint when selecting appropriate model
Application Recommendations
Selection Guidelines
- EP-20S: Large industrial facilities (600-800㎡)
- EP-12S: Medium commercial spaces (450-500㎡)
- EP-6.8D: Small to medium areas (200-250㎡)
Key Considerations
- Space Requirements: Match dehumidification capacity to area size
- Power Availability: Ensure compatible voltage supply (380V/220V)
- Installation Space: Account for equipment dimensions and clearance requirements
- Energy Efficiency: Balance performance needs with power consumption
These days no two Indoor Aquatic Facilities are alike. Recreational and competitive swimmers join families, students and medical patients in seeking indoor pools, water parks and natatoriums that meet personalized needs for healthy, appealing places to have fun, compete and restore health. However, all Indoor Aquatic Facilities need top of the line indoor pool dehumidification systems for their indoor pools and spas in order to operate properly.

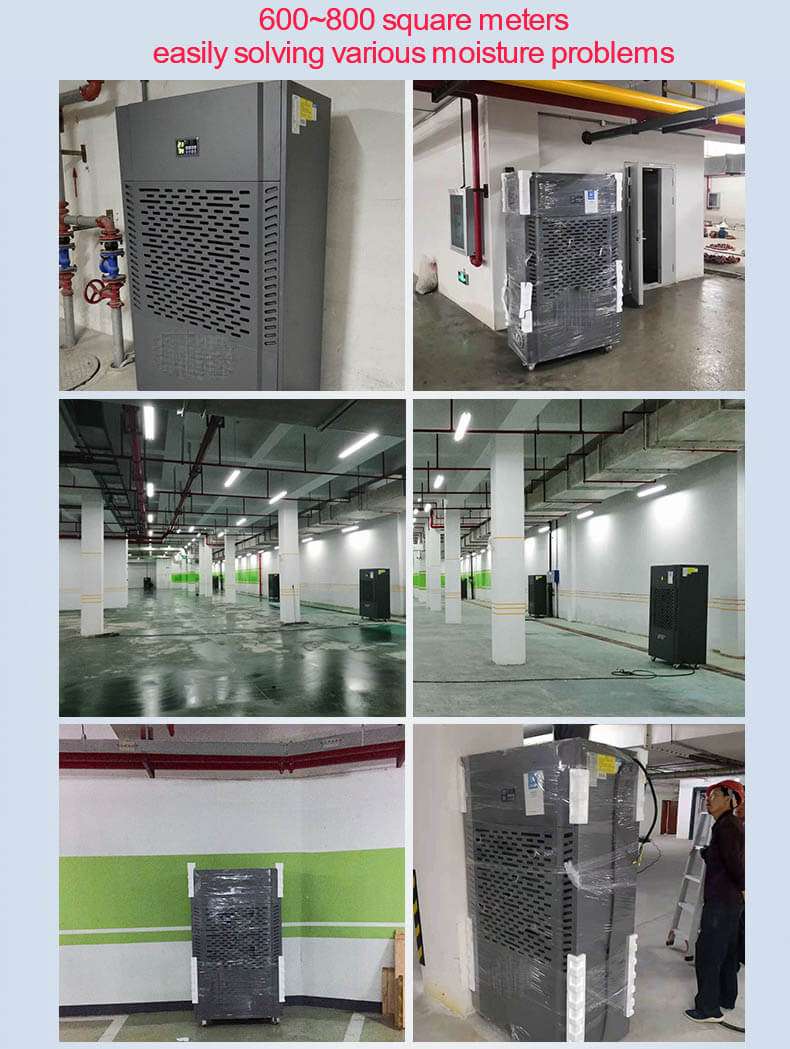

Industrial Dehumidifier for 600–1000 m²
If you need a dehumidifier for 600–1000 square meters, you must use an industrial-grade machine. Below is a comparison of suitable types and capacities.
Comparison Table
| Type | Coverage Area (m²) | Capacity (L/day) | Airflow (m³/h) | Power Supply | Best For |
|---|---|---|---|---|---|
| Refrigerant Dehumidifier | 600–800 | 250–300 | 3000–4000 | 220V / 380V | Warehouses, gyms, factories |
| Large Refrigerant Dehumidifier | 800–1000 | 500–600 | 5000–6000 | 380V (3-phase) | Large storage, workshops, logistics |
| Desiccant (Rotor) Dehumidifier | 600–1000 | 200–400 (low RH) | 3000–5000 | 380V (3-phase) | Cold storage, pharmaceuticals, labs |
| Ducted / Central Dehumidifier | 800–1000 | 400–600 | 4000–6000 | 380V (3-phase) | Multi-room buildings, commercial areas |
Recommendation
- For 600 m²: One unit with 250–300 L/day capacity is sufficient.
- For 1000 m²: One 500–600 L/day machine or two 250–300 L/day machines in parallel.
- Choose refrigerant type for normal environments, or desiccant type for cold / very dry conditions.
Dehumidification Systems for Indoor Pools
Compressor Type Swimming Pool Dehumidifier

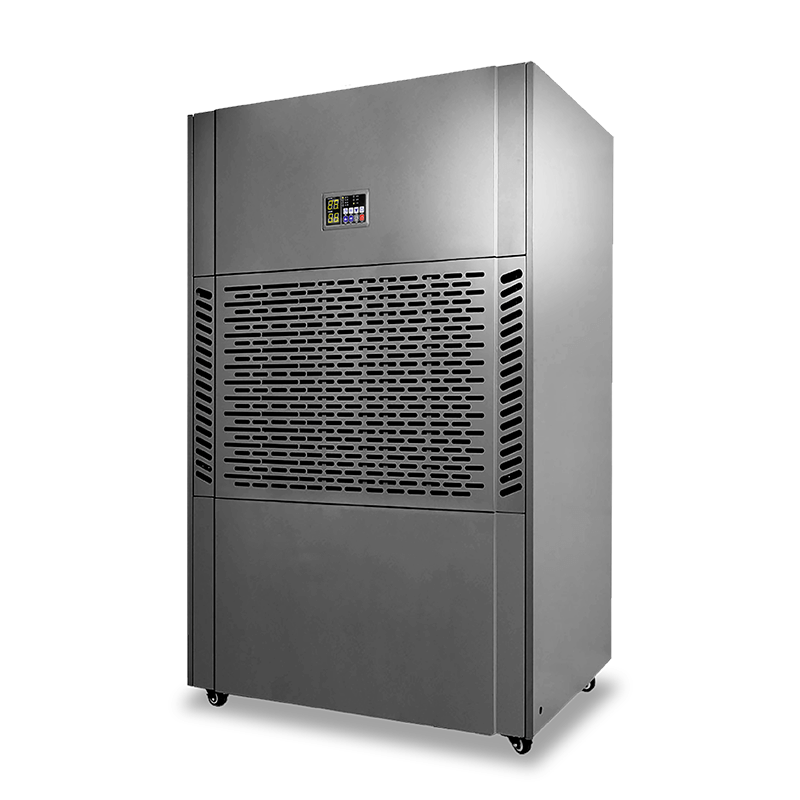

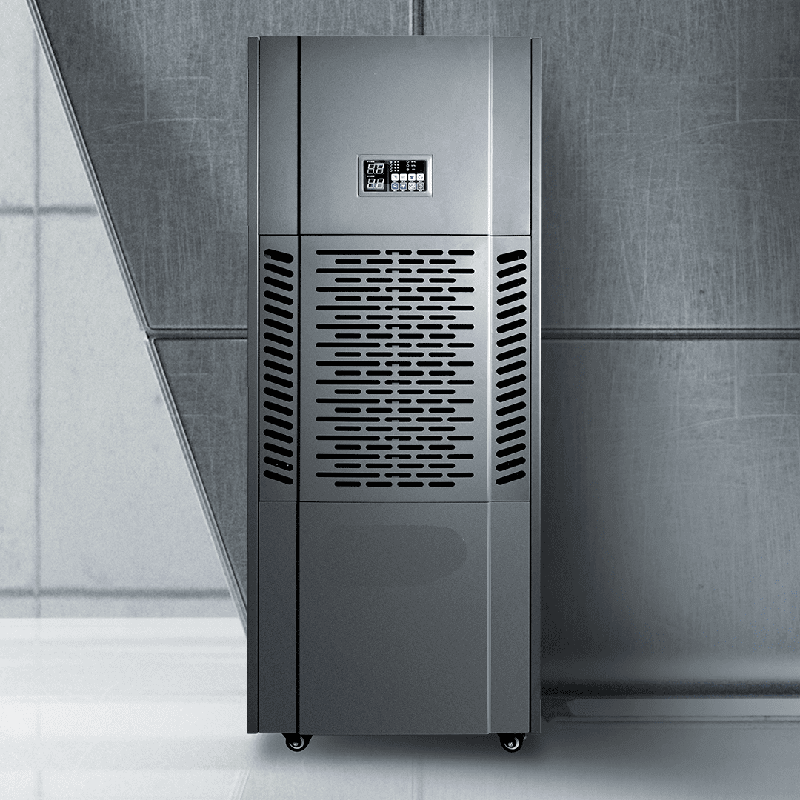

Product Overview
The Dehumidification System for Indoor Pools is a professional compressor type swimming pool dehumidifier designed to control excess humidity in indoor pool environments. By efficiently removing moisture from the air, this system protects building structures, prevents mold and corrosion, and creates a comfortable and healthy environment for swimmers and staff.
Engineered for continuous operation, it is widely used in commercial and residential indoor swimming pools.
Key Features & Advantages
High-Efficiency Compressor Dehumidification
The compressor type dehumidifier delivers powerful moisture removal, maintaining optimal humidity levels even in high-evaporation indoor pool areas.
Stable & Continuous Operation
Designed for 24/7 use, the system ensures consistent humidity control without performance loss during peak pool operation hours.
Protects Building & Equipment
By reducing condensation, the system helps prevent:
- Mold and mildew growth
- Rust and corrosion
- Damage to walls, ceilings, and ventilation systems
Energy-Efficient Design
Optimized refrigeration components reduce energy consumption while maintaining high dehumidification capacity.
Intelligent Control System
Equipped with automatic humidity control, allowing precise adjustment based on pool size, temperature, and usage.
Applications
This indoor pool dehumidification system is ideal for:
- Commercial swimming pools
- Hotel and resort pools
- School and sports center pools
- Therapy and rehabilitation pools
- Indoor water parks
Suitable for both new installations and retrofit projects.
Technical Specifications
- Product Type: Indoor Pool Dehumidification System
- Dehumidifier Type: Compressor Type
- Application: Swimming Pool Environment
- Control Mode: Automatic Humidity Control
- Installation: Floor-standing / Wall-mounted / Ducted (optional)
- Usage: Commercial and residential indoor pools
Capacity, airflow, and installation type can be customized.
Why Choose This Pool Dehumidification System
- Designed specifically for indoor swimming pools
- Powerful compressor-based moisture removal
- Improves indoor air quality and comfort
- Protects buildings and pool equipment
- Reliable performance with long service life
OEM & Customization Options
We offer OEM and project-based solutions:
- Dehumidification capacity customization
- Control system and automation options
- Voltage and electrical standards
- Installation type and casing design
- Logo branding for distributors and contractors
FAQs
Why is dehumidification important for indoor pools? Indoor pools generate high humidity, which can cause mold, corrosion, and discomfort without proper dehumidification.
Is this system suitable for large commercial pools? Yes, compressor type systems are ideal for medium to large indoor pool facilities.
Can humidity levels be adjusted automatically? Yes, the system includes automatic humidity control.
Is installation flexible? Yes, multiple installation options are available depending on project requirements.
Do you support customized solutions? Yes, capacity, control system, and installation type can be customized.
